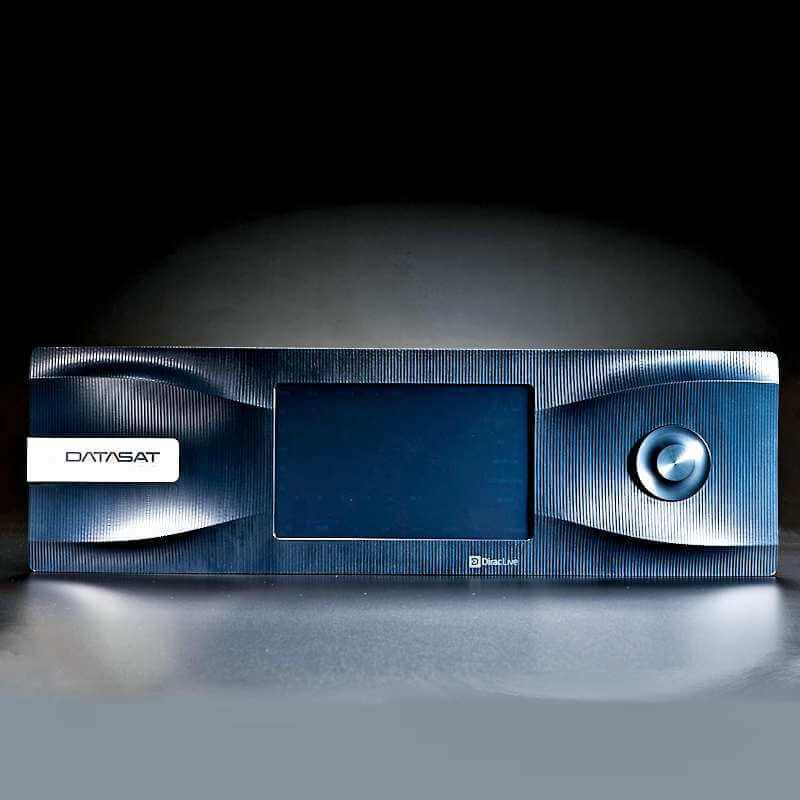

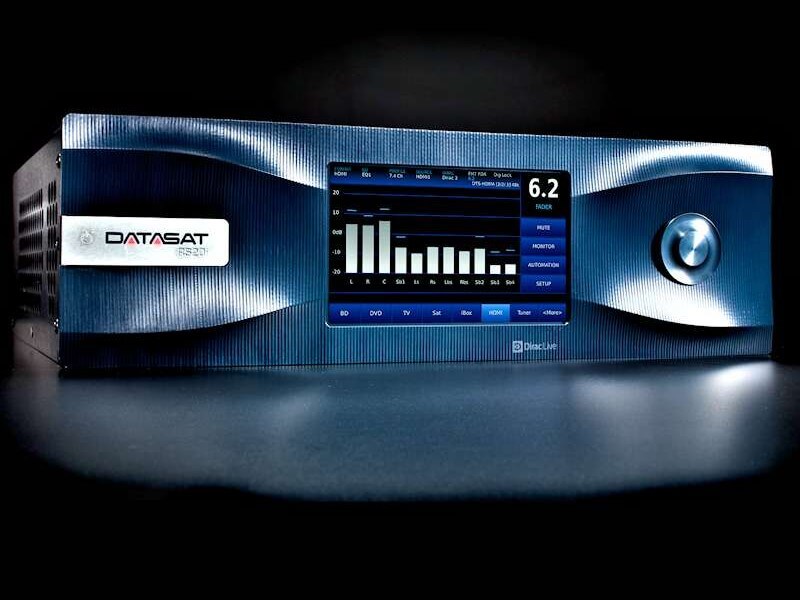

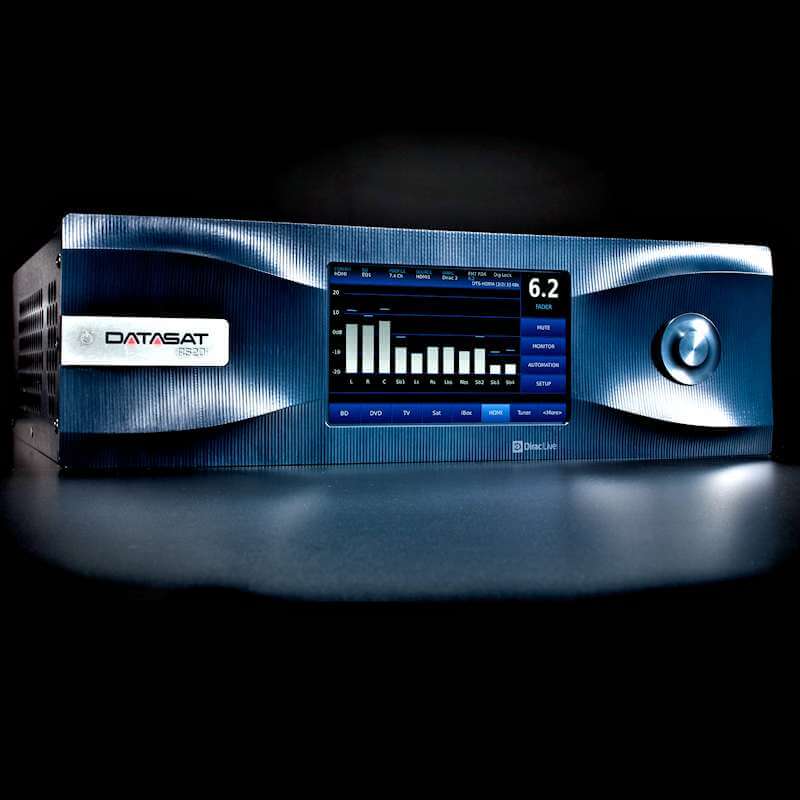

Datasat RS20i Surround Sound Processor

State of the art class leading Surround Sound Processing

Built by audiophiles for audiophiles, no expense has been spared in producing the most versatile, customizable and feature-rich audio processor available today in the high end consumer space.

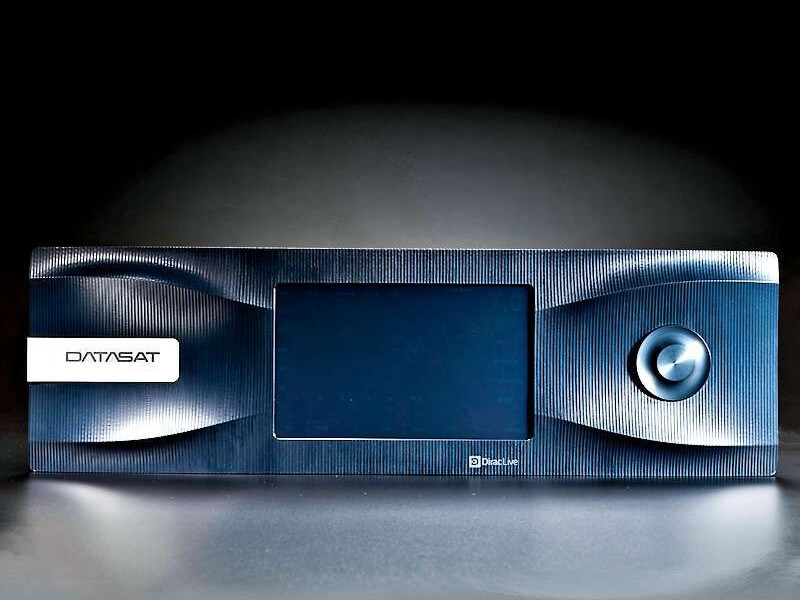

With sleek, elegant looks designed by Neal Feay Company, an award-winning designer of consumer electronics, the Datasat RS20i makes an attractive component of any luxury home entertainment system.

With great looks comes real power.

Developed on the same Datasat platform as our audio processor systems for professional cinema, the RS20i delivers a new dimension in surround sound excellence. Audio is transparent and true-to-source to ensure that the listening experience is every bit as stunning as the visuals.

Designed by the Datasat engineering team, the circuitry design and audio quality is second to none. Including such features such as memory profile settings, stackable multiple EQs, room optimisation/correction and extensive automation controls (not previously seen in high end audio processors) the RS20i is a cut above the competition.

Dialog is crystal clear, sound tracks sound like they are being played from the original mixing desk and features such as HDMI v1.4a mean the RS20i can also seamlessly handle 3D video content.

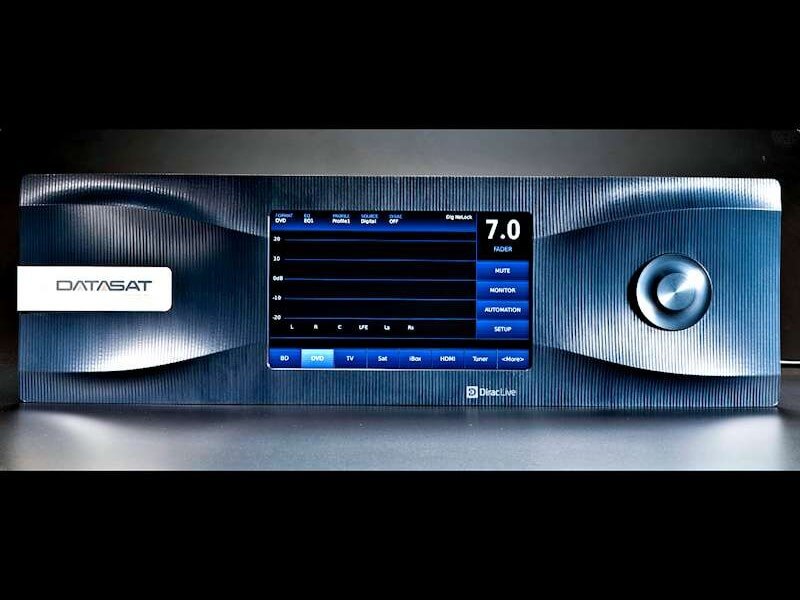

The RS20i is a professional sound solution. Once configured, it is easy to manage with all the power of a cinema audio processor available at your fingertips through your smartphone, iPad or laptop.

Datasat’s entrance into the high end consumer market is a natural progression based upon its many years in the professional cinema market.

16 channels of digital audio:

With 16 channels of digital audio available, the RS20i supports up to 85 digital and analog inputs as well as 34 audio outputs. This amount of outputs allows the audio processor to accommodate all surround sound formats currently available – including true 3D sound. In addition, three expansion slots allow for the easy addition of extra channels in the future.

Extensive equalization functionality:

The RS20i comes with 31 bands of third octave and three user-adjustable bands of parametric equalization on every channel. In addition, each channel includes low, high and bandpass filters to deliver a stunning clarity of sound.

Superior punch bass management:

Advanced bass management features include full and user-adjustable bass control on each individual screen and surround speakers. The RS20i supports up to 4 sub-woofers with your home cinema system to enable enhanced surround settings such as 11.1, 12.2 or 12.4.

Market-leading room optimization:

The RS20i is the only home cinema audio solution to feature the market-leading Dirac Live® room optimization technology. It delivers the most advanced impulse response correction available to deliver the widest listening sweet spot where the audio is tuned to create the most natural and immersive listening experience for the individual listener. Individual channel and global delays mean that you can position speakers to provide the most natural listening based on a central viewing point.

20 memory presets:

The essential elements of your home cinema audio can be quickly and easily saved. Elements such as room equalization, sound levels, and input and output set-ups are captured for every type of content that you wish to enjoy through your home cinema system – movies, music, HDTV or live events. These memory presets can be easily transferred to a memory stick for safe storage and retrieval.

Wide-ranging support for content types

The RS20i supports all the major audio decoders from Dolby and DTS as well as an extensive choice of digital, analog and HDMI audio and video inputs. This allows your home cinema system to accommodate an extremely broad array of content types including 3D video passthrough.

Ease of management:

The RS20i presents you with a number of features to make management flexible and convenient. In addition to a range of remote control options – including smartphone, tablet and laptop support – the system includes Ethernet and RS232 connects with up to 20 user-defined set-up and operational profiles.



Features and Benefits


Dirac Live® Room Optimization


16 Processing Channels


20 Memory Presets for All Settings


3rd Octave, Parametric & Shelving EQ’s (on all channels)

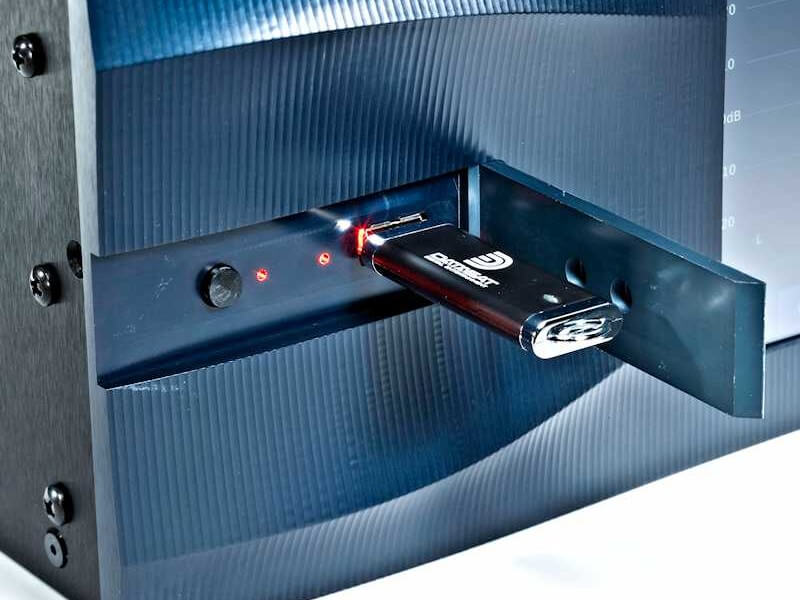

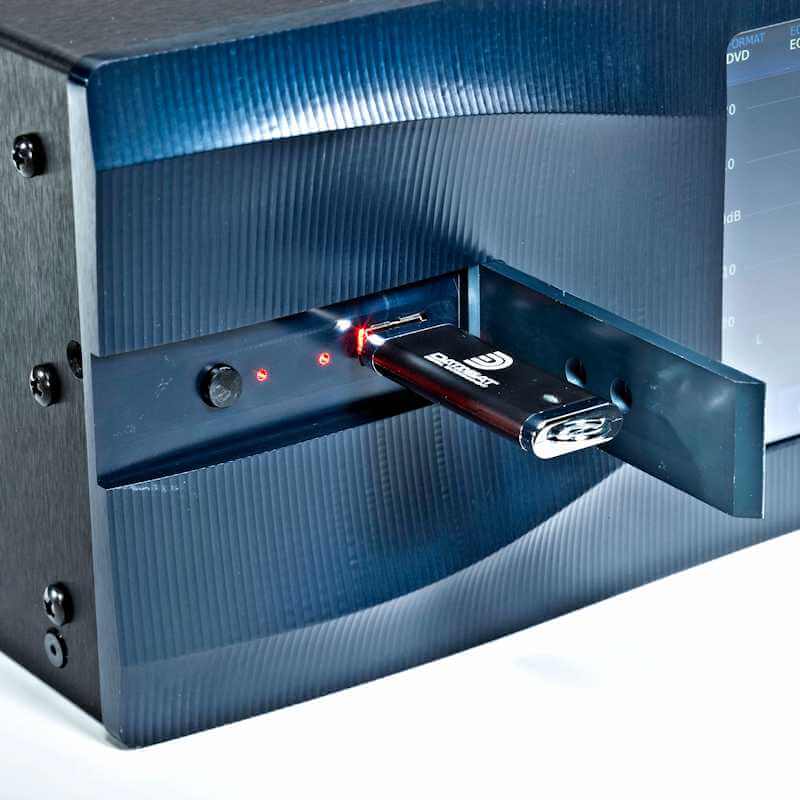

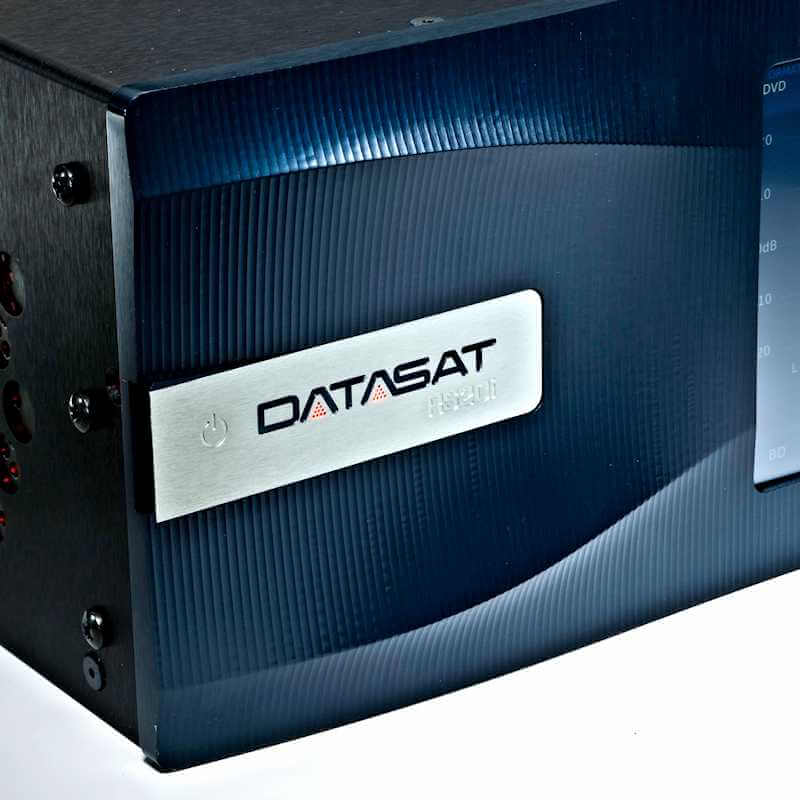

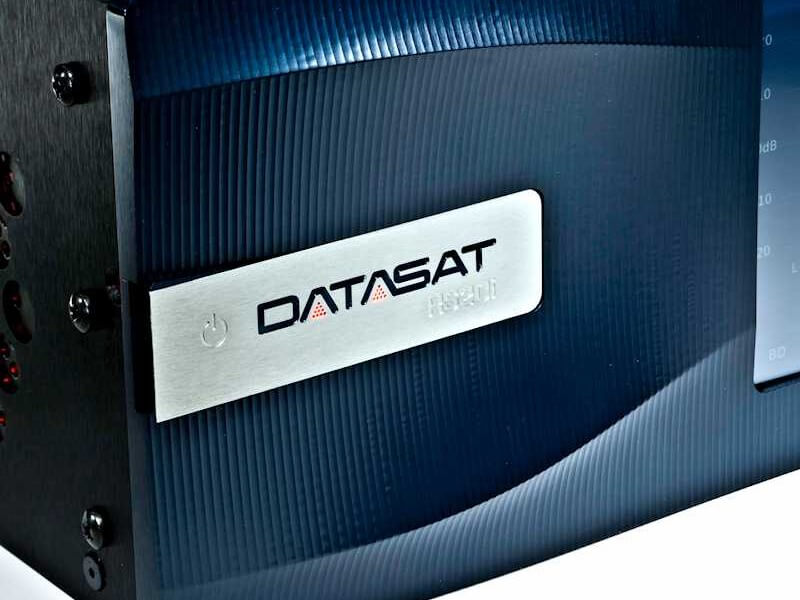

Power Switch Logo Panel and Hidden USB


Individual Channel and Global Delays


Low, High or Bandpass (on all channels)


VNC (Virtual Network Control) from Smart Phones, Tablets and Laptops


Detailed Specifications:


Digital Audio Decoders:

Dolby:
Dolby Digital Plus / Dolby TrueHD / Dolby Pro-Logic IIz / Dolby Atmos (Due August 2015)

DTS:
DTS®-HD Master Audio / DTS ES / DTS 5.1 / Neo:X / DTS:X (Due Winter 2015)

Auro-3D (optional):
Auro-3D Decoding (up to 13.1) / AuroMatic upmixer


Signal Inputs:
HDMI Audio & Video Inputs:
• Audio Channels: Up to 8 (LPCM, DTS-HD Master Audio & Dolby AC3)
• Connectors: 5 HDMI connectors (4 switched as inputs and 1 as output)
• HDMI V1.4a compliant digital audio with video pass-thru

Digital Audio Inputs:
• Channels: 16

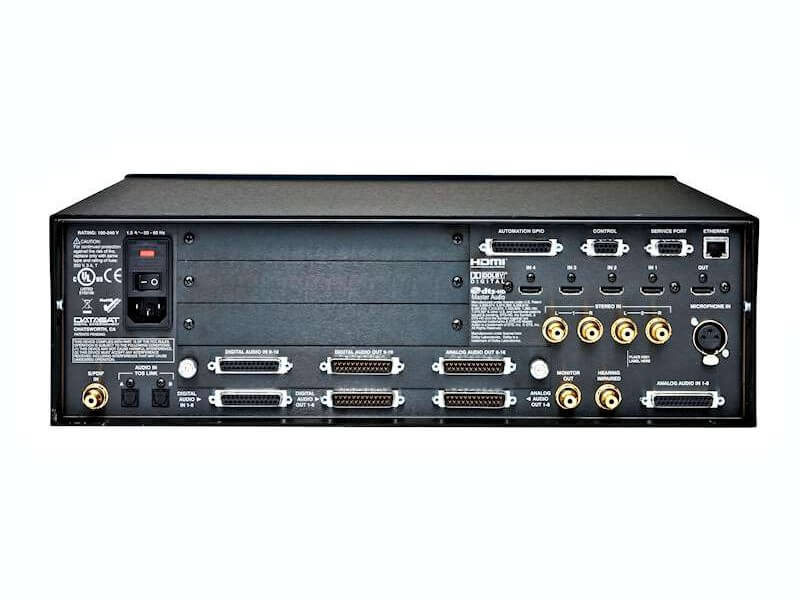

• Connectors: Two DB25 Female (Ch1-8 and Ch9-16)
• Digital Format: AES/EBU
• Sample Rates: 44.1kHz, 48kHz, 96kHz and 192kHz

Other Digital Audio Inputs:
• Connectors: Two TOSLINK (optical S/PDIF) and 1 coaxial (S/PDIF)

Analog Audio Inputs:
• Channels: 8 balanced, can be connected unbalanced
• Connector: DB25 (Female)
• Impedance: 10k ohms
• Reference level: 300mV RMS

Other Analog Audio Inputs:
• Channels: 2 stereo single ended input pairs
• Connectors: 4 RCA jacks
• Impedance: 10k ohms
• Sensitivity Adjustable: -16dBv to -4dBv

Microphone Input:
• Single channel -68dBv to -8dBv input with switchable +48V phantom power
• Connector: XLR female


Signal Outputs:
Digital Audio Outputs:
• Channels: 16, fully routable as to input
• Connectors: Two DB25 Male (Ch1-8 and Ch9-16)
• Digital Format: AES/EBU
• Sample Rates: 48kHz, 96kHz and 192kHz

Analog Audio Outputs:
• Channels: 16 (fully routable as to input), common mapping with Digital Outputs
• Balanced (can be connected unbalanced or single ended)
• Connectors: Two DB25 Male (Ch1-8 and Ch9-16)
• Level: 300mV with Fader at 7, +26dBu max (balanced)
• Connector: 1 single ended RCA output, channel-selectable to drive an external monitor. Adjustable Levels, to 300mV RMS
• Connector: 1 single ended RCA output, summed output for the hearing impaired. Fixed Level Out, 300mV RMS


Audio EQ:
Dirac Live® Room Optimization:
• 12-Channel Dirac Live® room optimization (16-channel Dirac to be available in future release)
•Dirac Live® Installer kit sold separately

3rd Octave EQ:
• 16 channels – 31 user-adjustable bandpass filters
• Gain +/-6dB adjustable in 0.5dB steps
• Frequencies range from 20Hz to 20kHz

Parametric:
• 16 channels with 3 user-adjustable parametric filters for shaping Subwoofer response
• Adjustable from 20 to 200Hz, gain +/-6dB i•0.1dB steps
• Q range from 0.7 to 5


Hi/Low/Bandpass Active Crossovers:
• Adjustable from 20Hz to 20kHz; adjustable slope of 6, 12, 18 or 24dB per octave (12 and 24dB filters are Linkwitz-Riley crossover)

Bass/Treble tone control:
• Adjustable +/-6dB per channel
• Corner frequency for bass adjustable from 50Hz to 300Hz
• Corner frequency for treble adjustable from 1.5kHz to 12.0kHz


Bass Management:
• Full or adjustable high pass settings for screen and surround speakers
• Adjustable low pass filter for sub woofers
• Support for 0 to 4 sub woofers
• Optional phantom center


Audio Delays:
Individual Channel Delays:
• 0 – 1000ms
Global Delay:
•0 –1000ms  (Note: Total delay per channel not to exceed 1000ms)


35mm Film Optical Soundtrack Audio Processing:
• Available with optional H338 plug-in circuit board


Automation Inputs/Outputs:
• Connectors: Two DB25 Male (Ch1-8 and Ch9-16). Ships with two DB25 Female to XLR 8-channel analog breakout cables
• 16 bi-directional GPIO’s, optically isolated, mute and fader inputs
• External +5v@140mA


Management:
Remote Control:
• RS232 DB9
• 10/100Mbps Ethernet
• Can be controlled by smart phone, iPad, Android based devices via iRule or VNC
• Crestron Integrated Device


Setup/Operation Profiles:
• Configurable for up to 20 user defined named input selections. Input selections include processing options along with a selected named set for EQ and output channel profile
• Configurable for up 20 user defined named EQ sets which include definitions for Dirac optimization, third octave EQ, parametric EQ, bass and treble controls
• Configurable for up to 20 user defined output channel profiles which include output channel names, output routing, crossover high/low pass filters
• User defined input selections controllable by Touchscreen, GPIO, or ethernet
• Export/Load of user configurations via USB


Power Requirements:
• 100-240 VAC, 50-60Hz, auto-switching
• 60w power consumption


Hardware Dimensions:
• Imperial – 5.6”(H) x 17.4”(W) x 17.63”(D). Height with feet removed 5.25″. Shipping Weight: 36lbs (with packaging and accessories)
• Metric – 14.22 cm(H) x 44.2 cm(W) x 44.78 cm(D). Height with feet removed 13.34cm. Shipping Weight: 16.33kg (with packaging and accessories)
• RS20i unit weight 26.5lbs (12.02kg)
• 3U 19” rackmount with optional ears


 Review

Documentation to be added soon . . .
