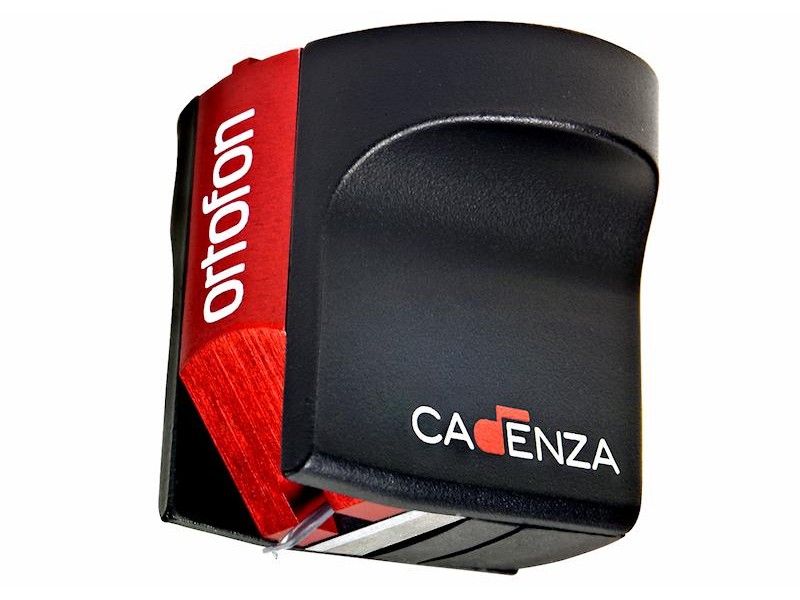

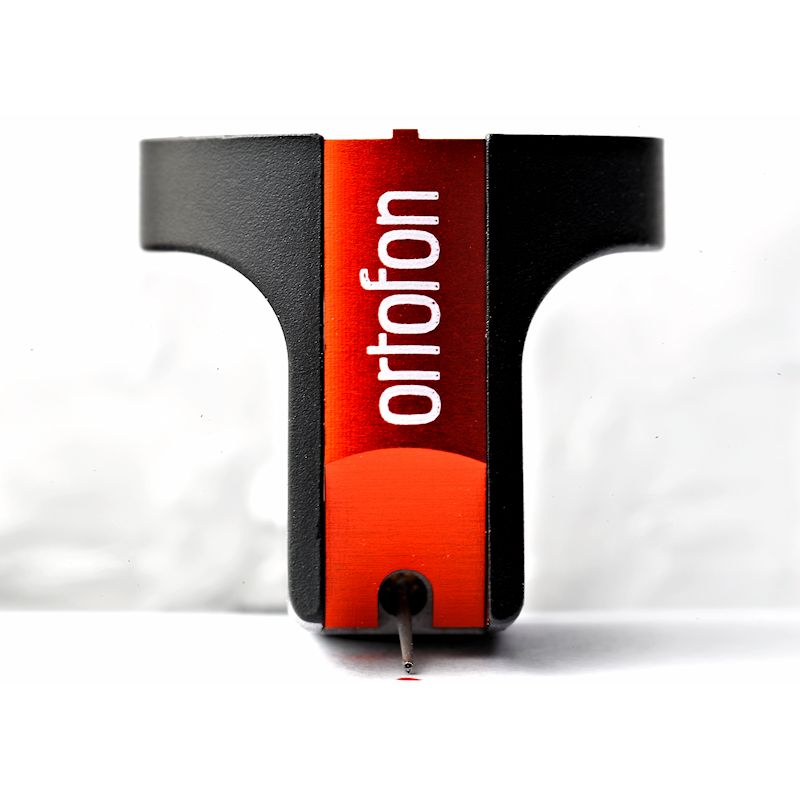

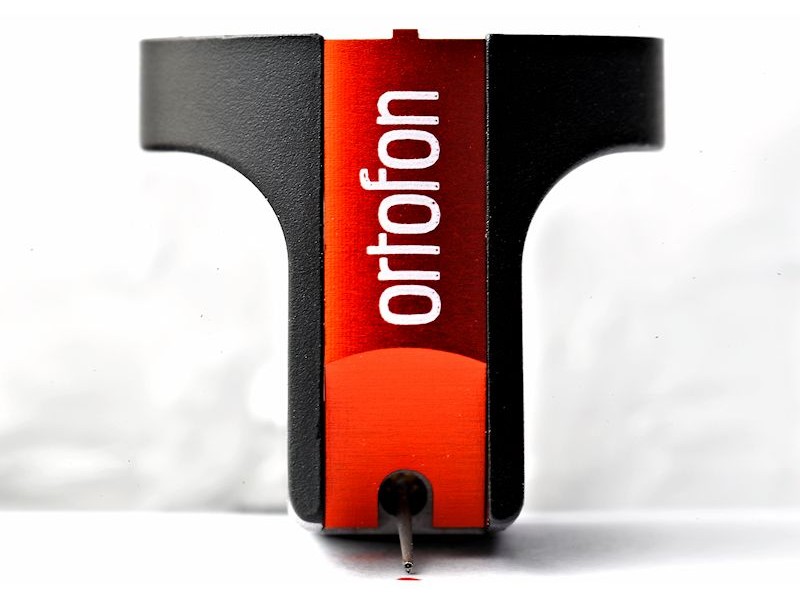

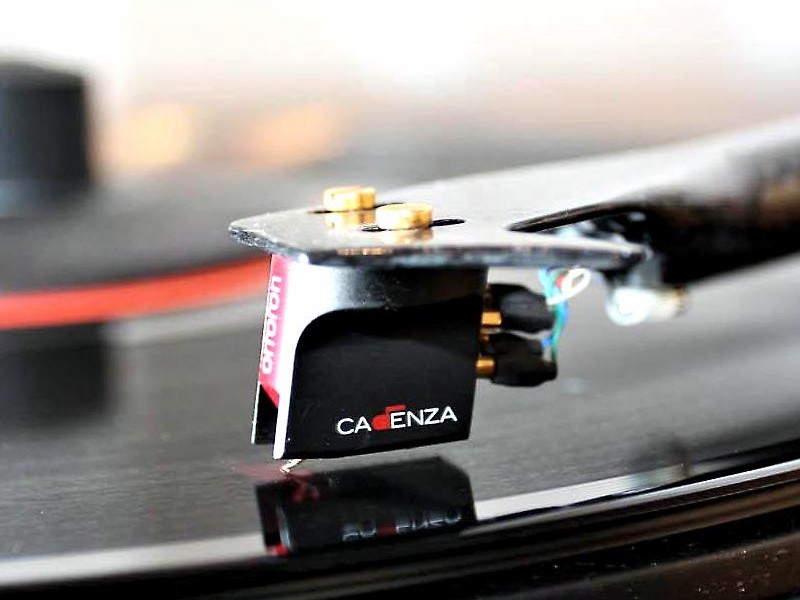

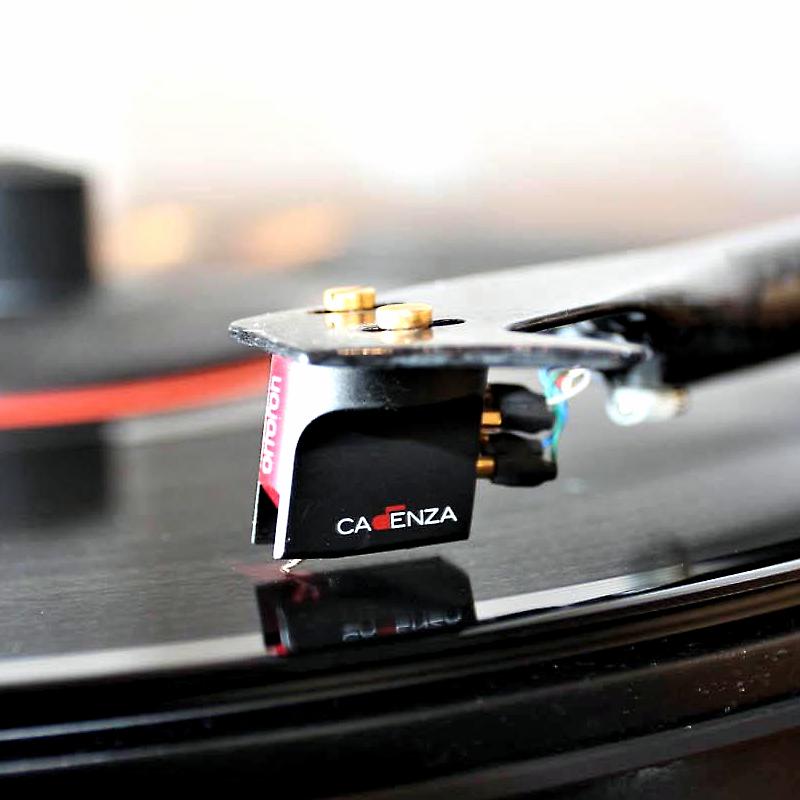

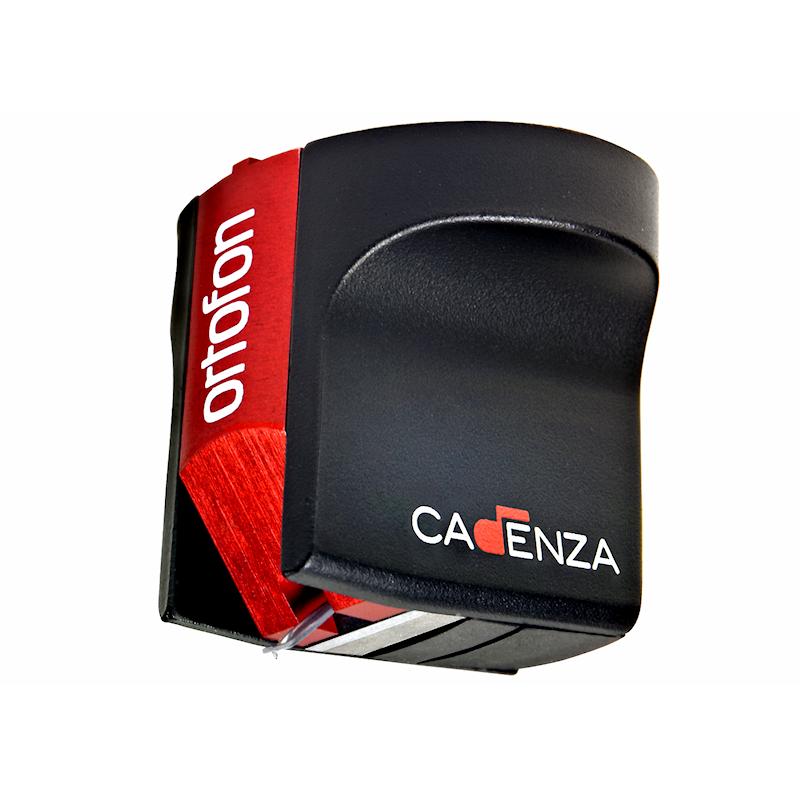

Ortofon Cadenza Red Moving Coil Cartridge

Ultimate Value for Money From A Fuller Sound Moving Coil

The introductory cartridge to the coveted Cadenza series of high-end moving coil pick-up cartridges is the Cadenza Red. This stylish, high-quality cartridge boasts a nude fine line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40µm. The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance for good stereo imaging.

The sound picture of the Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue. It also has a great space and depth in the stereo image.

Features and Benefits

Exceptional performance for price

Wide Range Damping System as used in the MC Anna and MC A95

Optimised for fuller, more relaxed presentation and moderate dynamics

Ortofon Nude Fineline stylus and aluminium Cantilever

Detailed Specifications:

Output Voltage (at 1kHz, 5cm/sec): 450 μV

Channel Balance at 1kHz: < 1.2dB

Channel Separation at 1kHz: > 23dB

Channel Separation at 15kHz: > 15dB

Frequency Range (at -3dB): 20 Hz – 50 kHz

Frequency Response 20Hz – 20kHz: +3 / -1 dB

Tracking Ability at 315Hz: Typically 80μm

Compliance, Dynamic, Lateral: 12μm / mN

Stylus Type: Nude Fine Line

Cantilever: Aluminium

Stylus Tip Radius r / R: 8 / 40

Tracking Force Range: 2.2 – 2.7g (22 – 27mN)

Recommended Tracking Force: 2.5g (25mN)

Tracking Angle: 20º

Internal Impedance / DC Resistance: 50Ω

Recommended Load Impedance: 50 – 500Ω

Cartridge Body Material: Stainless Steel Aluminium

Cartridge Colour: Red / Black

Cartridge Weight: 10.7g


Documentation to be added soon . . .
