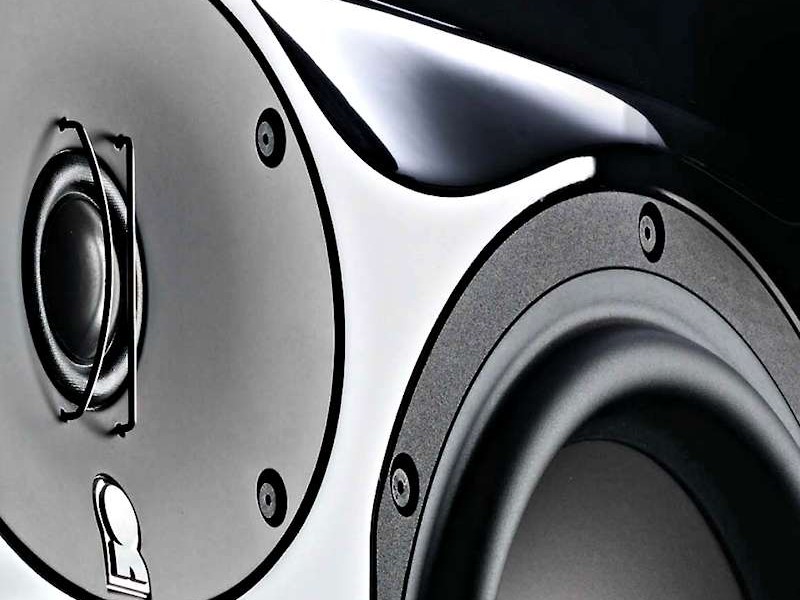

  • Revel_Ultima_Voice2_closeup
  • Revel_Ultima_Voice2_closeup_dark
  • Revel_Ultima_Voice2_front
  • Revel_Ultima_Voice2_rear
  • Revel_Ultima_Voice2_front_angle
  • Revel_Ultima_Voice2_closeup
  • Revel_Ultima_Voice2_closeup_dark
  • Revel_Ultima_Voice2_front
  • Revel_Ultima_Voice2_rear

Revel Ultima Voice2 Centre Loudspeaker

Reference Grade Centre Channel Loudspeaker Performance

In a multichannel system, no single speaker is charged with a more important mission than the center channel. Often carrying as much as 75% of a modern cinema soundtrack at any one instant, the center channel is the acoustical anchor for the entire system. Which is why Revel created the Voice2 loudspeaker. Built with the same exacting standards for tonal accuracy resident in every Ultima2, the Voice2 enjoys an effortless command of dynamic contrasts, textural detail and resolving power. And its unflagging output permits it to articulate every musical crescendo and blockbuster special effect that comprise today’s multichannel and surround-sound experience.

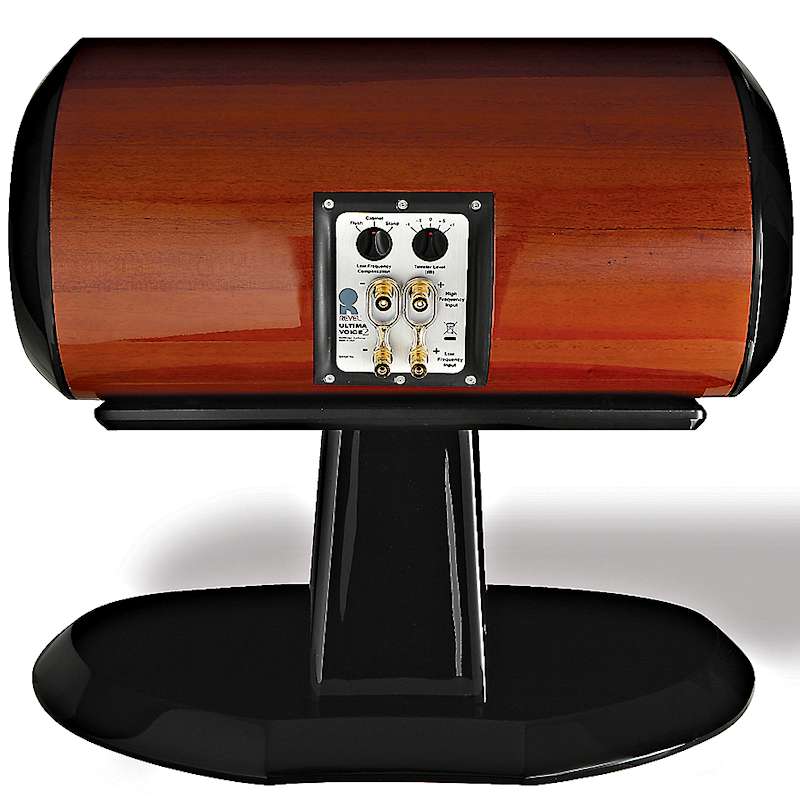

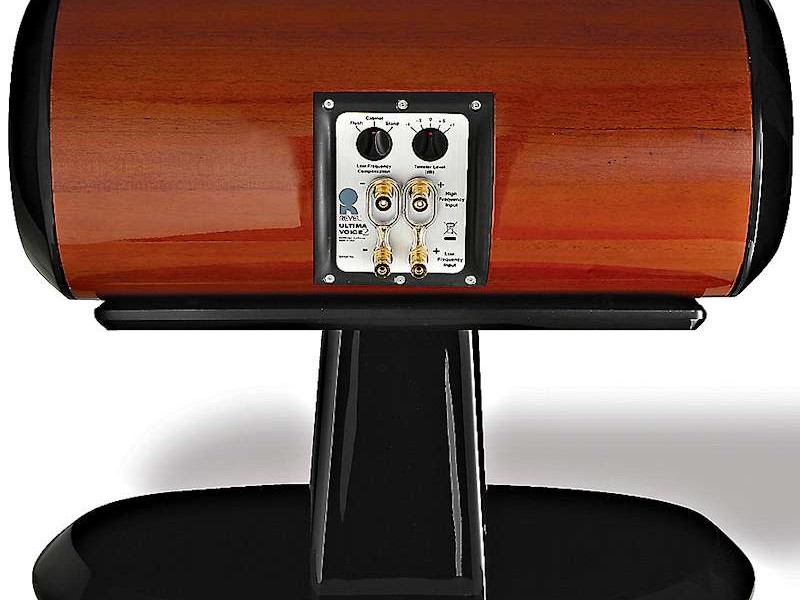

Incorporating all the latest advancements of the new Ultima2 series, the Voice2 is more than simply the finest center channel available. While an ideal match for other Ultima2 series loudspeakers as a center channel, the Voice2 is also well suited as the Left, Center, and Right front loudspeakers in applications where its orientation and dimensions are more suitable (such as above or below a screen). The Voice2 accurately matches the timbre of the Salon2, Studio2 and Gem2, even when used in a variety of applications. Rear panel controls are provided to compensate for variable acoustic conditions. Whether placed on the matching pedestal, or built into cabinetry,the Voice2 can be fine-tuned to ensure optimal performance.

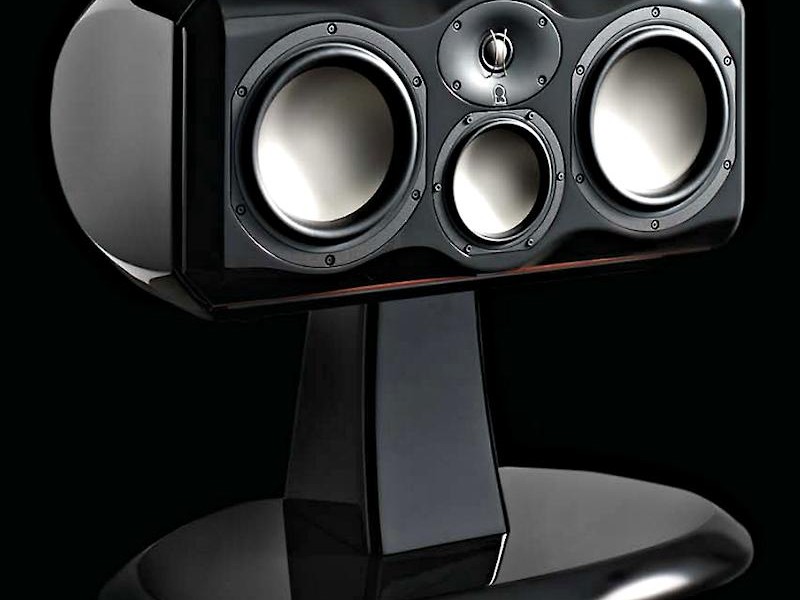

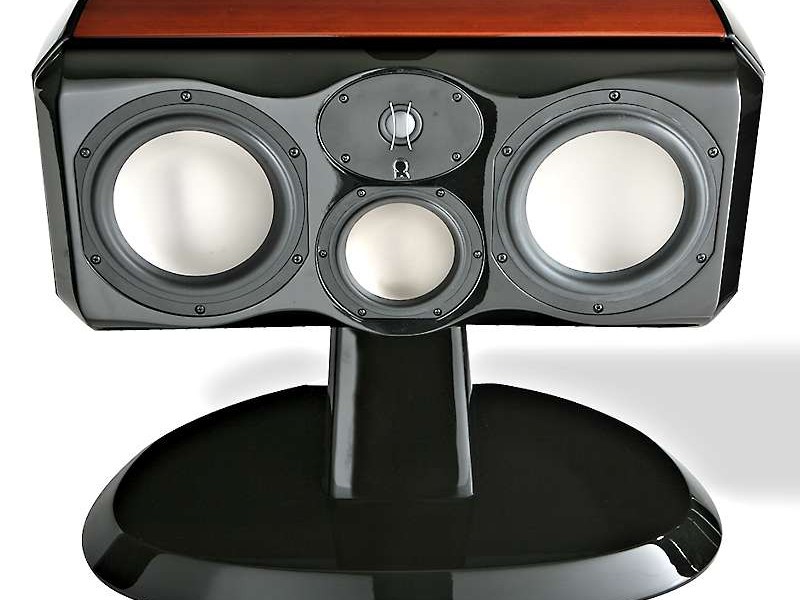

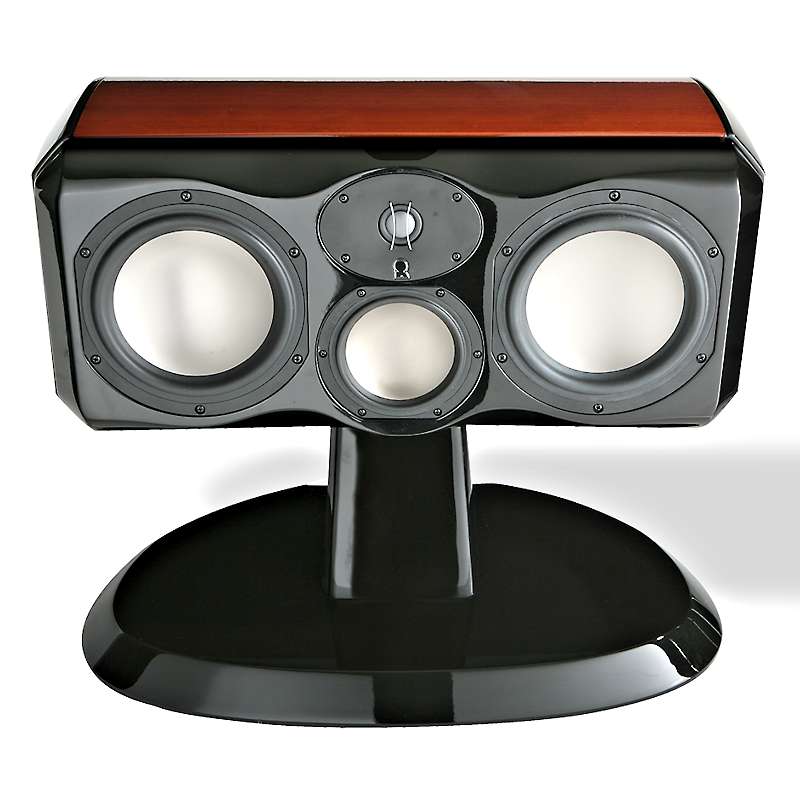

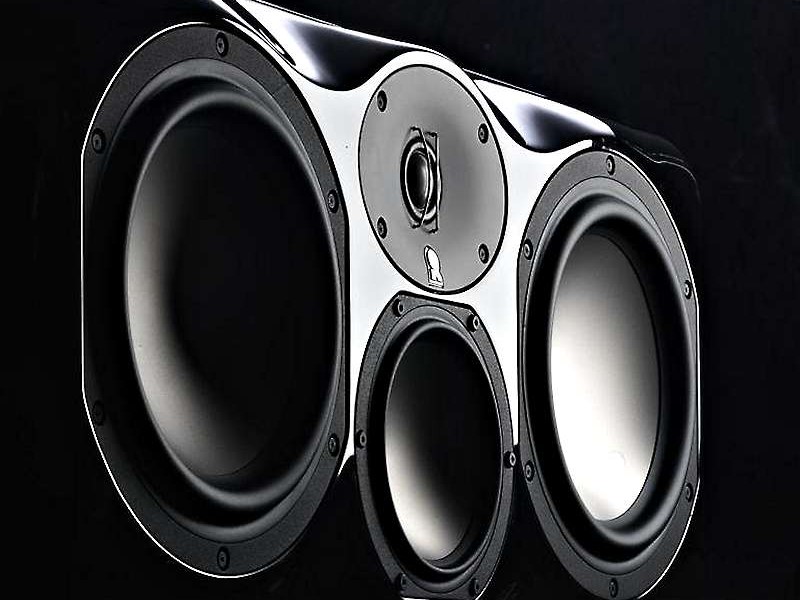

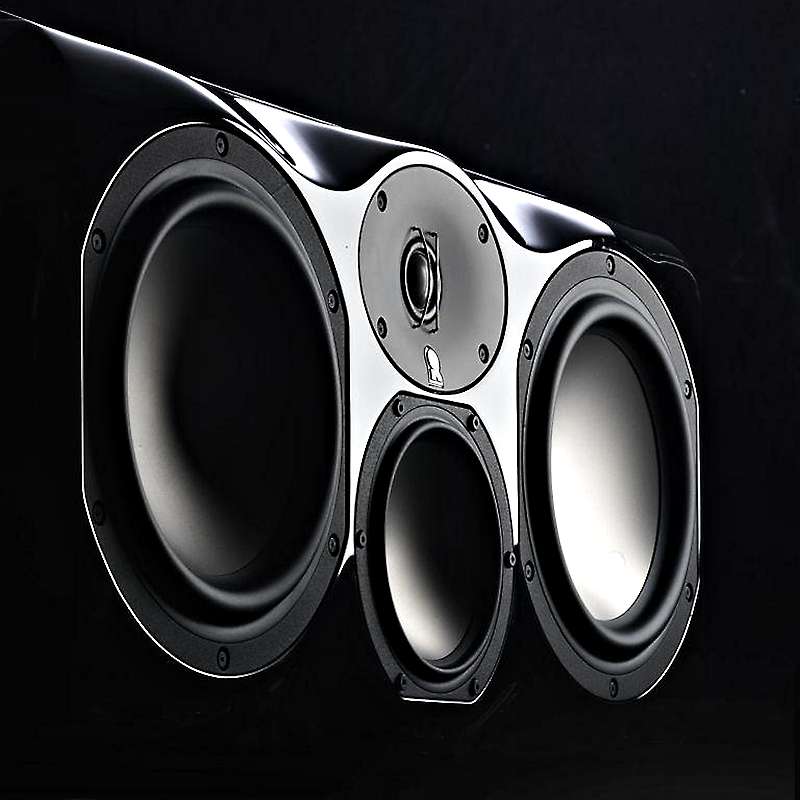

The Voice2 utilizes two 8-inch woofers together with a 5 1/4-inch mid-range – all with huge 2-inch flat-wire voice coils – to reproduce an extraordinarily wide dynamic range with freedom from compression. The result is consistent sound quality, regardless of output level. Together with the new 1-inch Ultima2 series tweeter and computer-optimized high-order filter networks, the Revel Ultima Voice2 truly provides a new reference for center channel sound quality.

Features and Benefits

Rounded baffles and enclosures virtually eliminate diffraction

Woofer and midrange trandsducers feature inverted-dome designs for superior piston like behavior

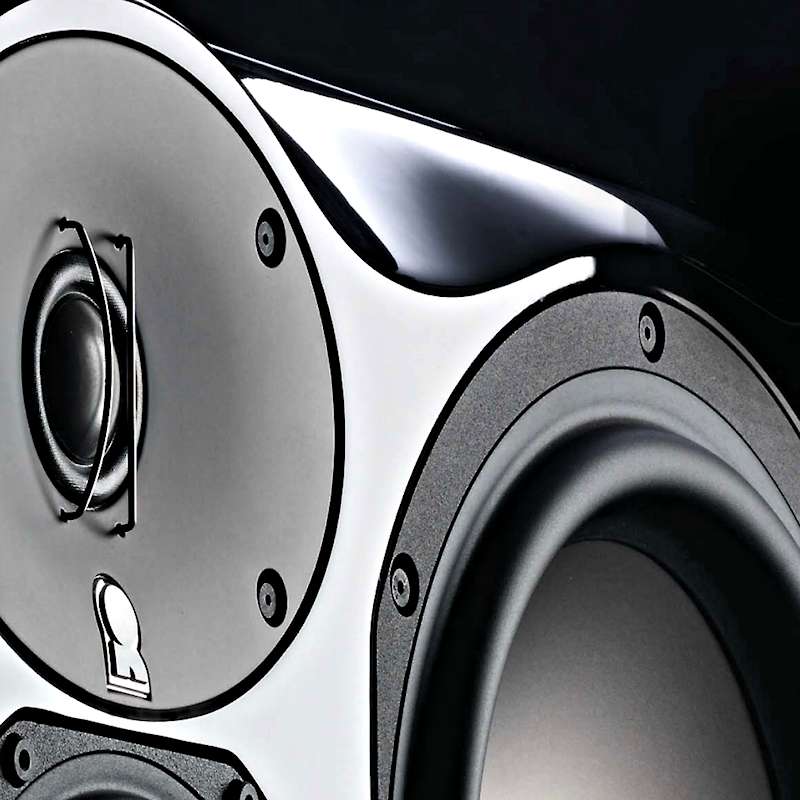

Tweeters use acoustically optimized waveguides for seamless transitions between the tweeter and midrange

Pure-beryllium dome tweeters exhibit the optimal balance of high-power handling, low distortion and compression

Separate filter boards for each frequency range

Ideally suited for use as a LCR loudspeaker

Detailed Specifications:

DESCRIPTION:   Ultima2 Loudspeaker Series, 3-Way Center Channel Loudspeaker

FREQUENCY RESPONSE:   3 dB from 60 Hz to 45 kHz ±0.5 dB from 65 Hz to 18 kHz ±1.0 dB from 65 Hz to 20 kHz

DIMENSIONS: HEIGHT –  14.7″ (37.3 cm) x WIDTH – 25.5″ (64.8 cm) x DEPTH – 14″ (35.6 cm)

WEIGHT:   62 lb (28.2 kg) Shipping weight: 74.5 lb (33.8 kg)

CROSSOVER FREQUENCIES:   Three-way, high-order acoustic response @ 235 Hz and 2 kHz

FINISHES:   Piano black or mahogany finish

HIGH-FREQUENCY DRIVE COMPONENTS:   1″ (2.5 cm) beryllium tweeter

NOMINAL IMPEDANCE:   6 ohms (nominal) 3.6 ohms (minimum @ 90 Hz)

LOW FREQUENCY EXTENSION:   -10 dB at 36 Hz -6 dB at 49 Hz -3 dB at 60 Hz

LOW-FREQUENCY DRIVE COMPONENTS:   Two 8″ (20 cm) titanium cone woofers

MID-FREQUENCY DRIVE COMPONENTS:   5 ¼” (13.3 cm) titanium cone midrange

SENSITIVITY:   89 dB SPL with 2.83 V @ 1m (4 pi anechoic)

OPTIONAL ACCESSORIES:   Optional Floor Pedestal for Voice2 • Adds 24.2″ (61.4 cm) to Voice2 height • Piano black finish only


Documentation to be added soon . . .
